MODE Ⅱ Actuator | Precision Bi-Directional HVAC Air Mode Control | Fast Response, Ultra-Quiet
Manufacturer: Zhengzhou Junchi Tech Co., Ltd.
Product Category: Automotive HVAC Actuators / Air Distribution Systems
Application: Air Mode Doors (Face/Foot/Defrost), Dual-Zone Climate Control, Vent Direction Regulation
Product Overview

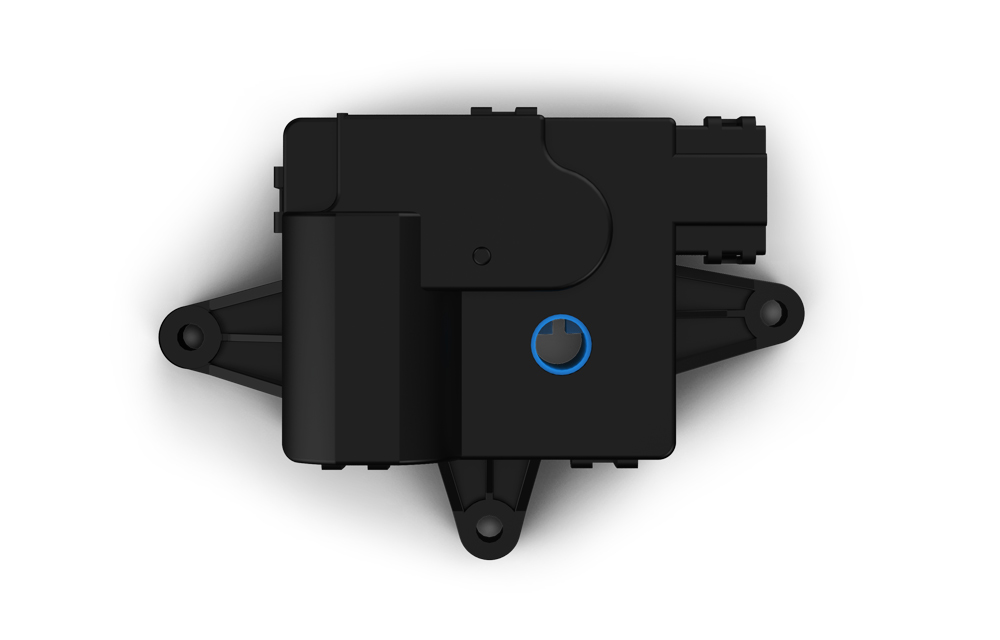

Zhengzhou Junchi Tech Co., Ltd. is proud to launch the MODE Ⅱ Actuator, a high-performance electromechanical device engineered for precise bi-directional control of automotive air distribution systems. As a critical component in modern Vehicle Climate Control assemblies, this actuator manages the positioning of mode doors to direct airflow to the windshield (defrost), face vents, or footwells with exceptional speed and accuracy.
Designed to meet the rigorous demands of both traditional and New Energy Vehicles (NEVs), the MODE Ⅱ features a robust bi-directional rotation capability (90° clockwise and anticlockwise), allowing for versatile integration into complex HVAC linkage systems. With an ultra-fast response time of approximately 3 seconds per 90°, it ensures immediate cabin comfort adjustments when drivers change settings. Combined with an industry-leading noise level of ≤43 dB(A) and a high lock torque of >1.5 N·m, the MODE Ⅱ Actuator represents the pinnacle of reliability, silence, and efficiency in automotive climate control.
Key Features & Technical Advantages
1. Rapid Bi-Directional Response
Unlike unidirectional actuators that require a full reset cycle, the MODE Ⅱ Actuator supports direct clockwise and anticlockwise rotation within a 90° operating angle. This bi-directional capability, coupled with a swift operation duration of 3.0 ± 2.0 seconds (no-load), allows for instant air direction changes, enhancing the user experience by eliminating lag between command and action.
2. Superior Locking Torque – Safety
Safety and stability are paramount in air door control. The MODE Ⅱ delivers a Lock Torque exceeding 1.5 N·m at 12V. This high holding force ensures that mode doors remain securely in position against high-velocity airflow pressure, preventing unwanted drift or “flapping” noises during vehicle acceleration or sudden wind gusts, even without continuous power application.
3. Ultra-Quiet Operation (NVH Optimized)
In the pursuit of a serene cabin environment, noise reduction is critical. The MODE Ⅱ Actuator achieves a whisper-quiet performance level of ≤43 dB(A) under no-load conditions. This is significantly lower than many standard actuators, ensuring that mode transitions are virtually silent to passengers, a key requirement for premium and electric vehicle segments.
4. High Efficiency – Low Power Consumption
Optimized for energy conservation, the actuator draws less than 0.1A under rated load (0.3 N·m) and only 0.05A max at no-load. This low current draw reduces the strain on the vehicle’s electrical system and minimizes heat generation within the dashboard assembly, contributing to overall system longevity and fuel/energy efficiency.
5. Robust Connector – Electrical Integrity
Reliability extends to the physical interface. The MODE Ⅱ features a reinforced connector design tested to withstand a static load of 98N in multiple directions (stretching and vertical) without malfunction. With an insulation resistance of >5MΩ, it guarantees electrical safety and signal integrity even in humid or vibrating environments.
Technical Specifications
| Parameter | Specification | Test Conditions / Notes |
|---|---|---|
| Electrical Characteristics | ||
| Operating Voltage Range | DC 7V – 15V | Wide input tolerance for automotive networks |
| Rated Voltage | DC 12V | Standard nominal voltage |
| Rated Current | < 0.1 A | At DC 12V, 0.3 N·m Load, Ambient Temp |
| No-Load Current | ≤ 0.05 A | At DC 12V, Ambient Temp |
| Start Voltage | ≤ 7 V | Max voltage to initiate motion at 0.3 N·m Load |
| Start Current | ≤ 0.45 A | At DC 12V, Ambient Temp |
| Substrate Rated Power | 1/12 W | Internal circuitry rating |
| Insulation Resistance | > 5 MΩ | Between terminals and case (DC 500V) |
| Mechanical Performance | ||
| Rated Load (Torque) | 0.3 N·m | Continuous operating torque |
| Lock Torque | > 1.5 N·m | Stall/Holding torque at DC 12V |
| Operating Angle | 90° | Bi-directional (Clockwise & Anticlockwise) |
| Operation Time (No Load) | 3.0 ± 2.0 sec / 90° | At DC 12V, Ambient Temp |
| Operation Time (Loaded) | 3.5 ± 2.0 sec / 90° | At DC 12V, 0.3 N·m Load, Ambient Temp |
| Rotation Direction | Bidirectional | Reversible control logic |
| Environmental & Acoustic | ||
| Noise Level | ≤ 43 dB(A) | At DC 12V, No Load, Standard Test Distance |
| Operating Temperature | -30°C to +75°C | Reliable performance in extreme climates |
| Storage Temperature | -35°C to +80°C | Non-operating storage range |
| Physical Interface | ||
| Connector Durability | Withstands 98N Load | Tested in 2 stretching & 4 vertical directions |
| Connector Type | Customizable | Per OEM electric theory and drawing specs |
Applications in Automotive Climate Control
The MODE Ⅱ Actuator is specifically designed for dynamic air distribution tasks:
- Primary Mode Door Control: Precisely directs airflow between Defrost (windshield), Face (dashboard vents), and Foot (floor vents) positions.
- Dual-Zone & Multi-Zone HVAC: Enables independent air direction control for driver and passenger sides in advanced climate systems.
- Automatic Climate Control Systems: Works seamlessly with ambient sensors and ECUs to automatically adjust vent angles based on sunlight load and cabin temperature gradients.
- Rear Seat Climate Modules: Provides compact, quiet, and reliable air direction control for rear passenger comfort units.
Why Choose Zhengzhou Junchi Tech?
At Zhengzhou Junchi Tech Co., Ltd., we are dedicated to advancing automotive comfort through innovation. The MODE Ⅱ Actuator reflects our core values of quality, precision, and customer satisfaction.
- Engineering Excellence: Our R&D team optimizes gear train geometry and motor winding patterns to achieve the perfect balance of speed, torque, and silence.
- Quality Assurance: Every actuator undergoes strict testing for electrical insulation, mechanical endurance, and environmental resilience, adhering to global automotive standards.
- Customization Flexibility: We offer tailored solutions for connector pinouts, shaft geometries, and mounting brackets to ensure seamless integration with your specific HVAC assembly.
- Future-Ready: As we expand into new energy products, our actuators are designed to support the high-efficiency and low-noise requirements of next-generation electric vehicles.
Contact Us for Solutions
Elevate your vehicle’s climate control performance with the MODE Ⅱ Actuator. Contact Zhengzhou Junchi Tech today for technical consultations, sample requests, and partnership opportunities.
Zhengzhou Junchi Tech Co., Ltd.
Precision Control for Ultimate Comfort.
Note: All technical data is based on standard testing conditions at Zhengzhou Junchi Tech R&D Center. Specific connector pinouts and internal circuit diagrams are available upon request under NDA. Specifications are subject to change for product optimization.
