High-Precision Automotive HVAC Stepper Motor Actuator | 12V, 7000 Steps, Extreme Temperature Performance
Manufacturer: Zhengzhou Junchi Tech Co., Ltd.
Product Category: Automotive Climate Control Components / Electric Actuators
Application: Automotive HVAC Systems, Air Flap Control, Temperature Regulation
Product Overview

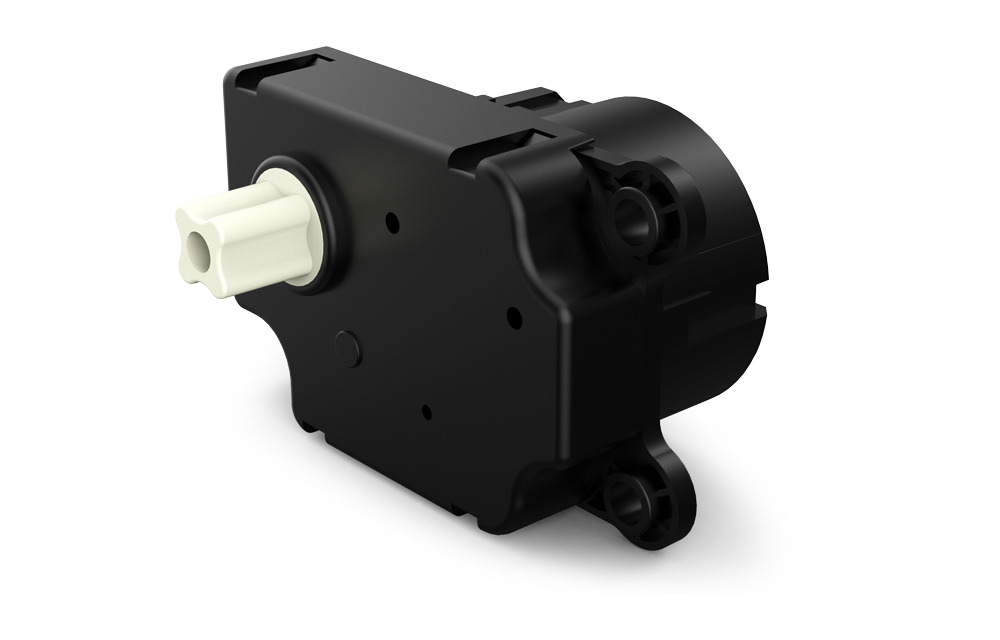

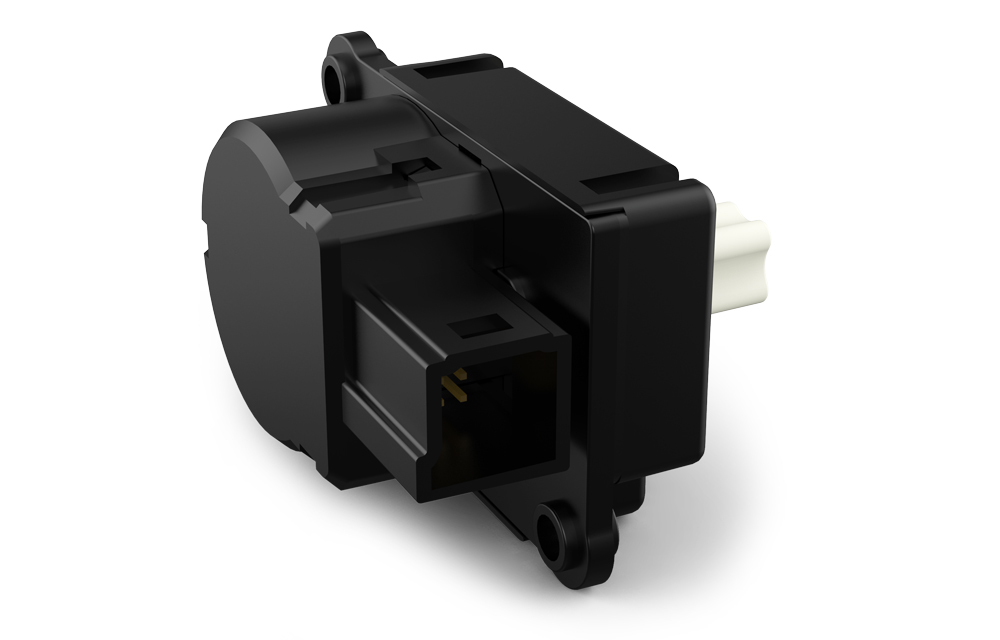

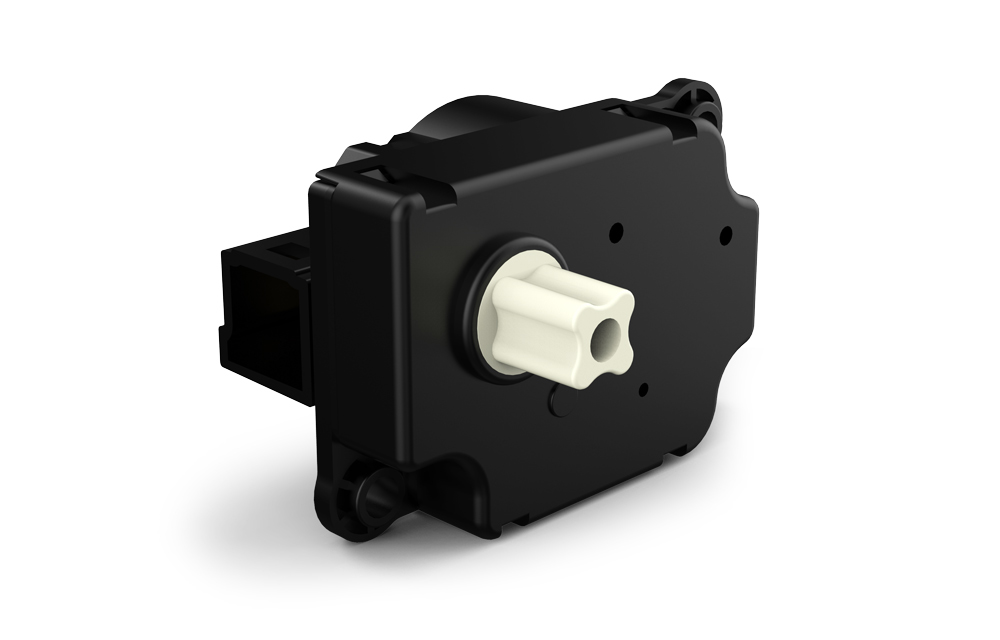

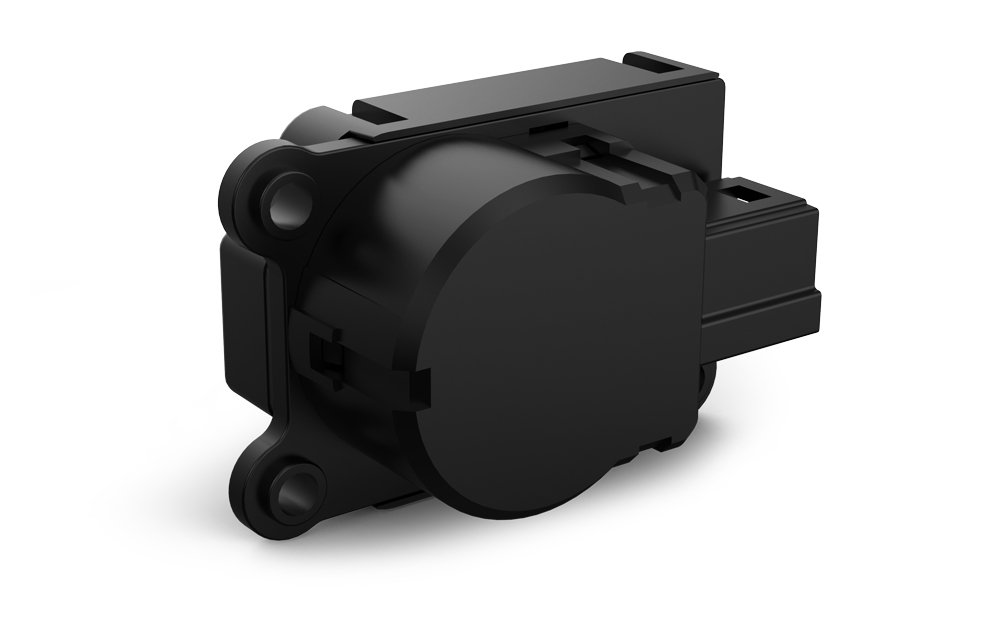

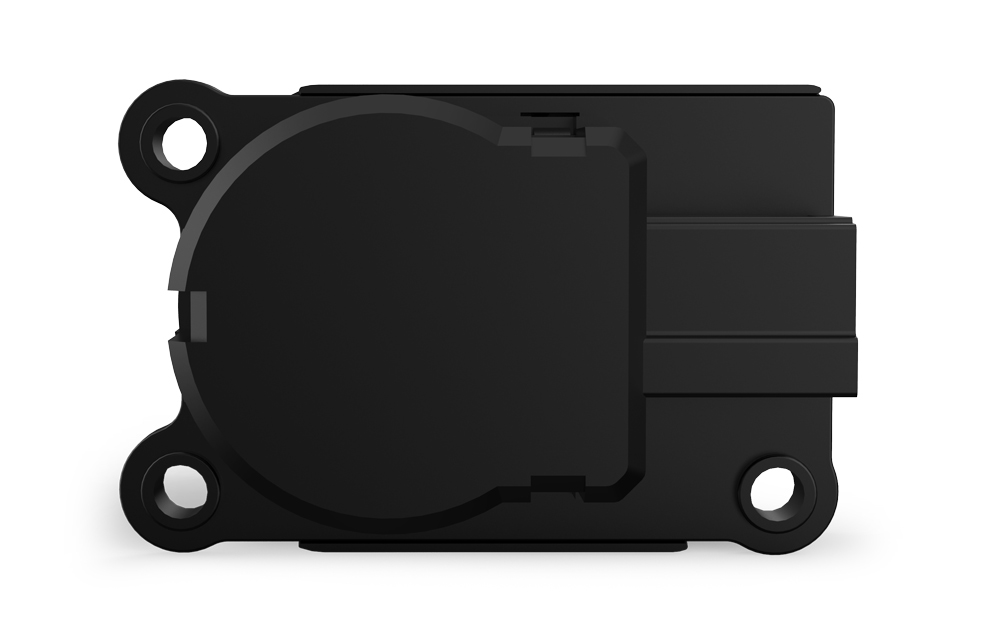

Zhengzhou Junchi Tech Co., Ltd. presents its latest High-Precision Automotive HVAC Stepper Motor, a critical component designed for next-generation vehicle climate control systems. Engineered for extreme reliability and precision, this stepper motor actuator serves as the core driving mechanism for air distribution flaps, temperature blend doors, and recirculation valves in modern automotive HVAC assemblies.
As a high-tech enterprise specializing in vehicle climate control systems, Junchi Tech has integrated advanced micro-stepping technology with robust gear reduction mechanisms to deliver exceptional torque stability across a wide operating temperature range (-40°C to 85°C). This product exemplifies our commitment to innovation in automotive electronics and new energy vehicle applications, meeting the rigorous demands of global OEMs and Tier-1 suppliers.
Unlike standard motors, this unit features a 1:300 high-ratio gearbox coupled with a 7000 steps-per-revolution resolution, ensuring smooth, silent, and highly accurate positioning essential for maintaining optimal cabin comfort. Its compact design (≤90g) and IP50 protection class make it ideal for space-constrained installations within dashboard HVAC modules.
Key Features – Technical Advantages
1. Extreme Environmental Adaptability
Designed for the harsh realities of the automotive environment, this stepper motor maintains consistent performance from arctic cold (-40°C) to desert heat (85°C). The specialized winding and lubrication ensure that starting torque remains sufficient even at low voltages (8V) in freezing conditions, preventing flap stagnation during cold starts.
2. Ultra-Quiet Operation (NVH Optimized)
Noise, Vibration, and Harshness (NVH) are critical metrics in modern vehicle design. Our motor achieves an industry-leading noise level of ≤35 dB(A) under both no-load and loaded conditions (40 N·cm). This silent operation ensures that climate control adjustments are imperceptible to passengers, enhancing the premium feel of the vehicle interior.
3. High Precision – Smooth Control
With 7000 steps per revolution, the motor offers micro-degree angular control. This high resolution allows the HVAC control unit to modulate air temperature and flow with minimal fluctuation, eliminating the “hunting” effect often seen in lower-resolution actuators. The 100% rated load duty cycle ensures continuous operation without overheating.
4. Robust Torque Performance
The motor delivers a rated torque of 120±25 N·cm at standard conditions, with a holding torque of ≥70 N·cm to maintain flap position against air pressure without continuous power consumption. The maximum torque limits are strictly controlled to prevent mechanical damage to linkage systems during obstruction events.
Technical Specifications
| Parameter | Specification | Condition / Note |
|---|---|---|
| Electrical Characteristics | ||
| Operating Voltage Range | 8V – 16V | Wide input tolerance |
| Rated Voltage | 12V | Standard automotive nominal |
| Coil Resistance | 90 ± 10 Ω | At 25°C |
| Rated Frequency | 220 PPS | Pulses Per Second |
| Mechanical Performance | ||
| Rated Speed | 1.67 RPM | At 12V, 200PPS |
| Steps per Revolution | 7000 | High-resolution micro-stepping |
| Gear Ratio | 1:300 | Precision planetary/gear reduction |
| Rated Torque | 120 ± 25 N·cm | @ 23°C, 12V, 200PPS |
| Holding Torque | ≥ 70 N·cm | Static holding capability |
| Torque vs. Temperature | Starting Torque @ 8V, 200PPS | |
| @ -40°C | > 65 N·cm | Cold start performance |
| @ 23°C | > 55 N·cm | Normal operation |
| @ 85°C | > 35 N·cm | High temp stability |
| Max Torque Limits | Protection Thresholds @ 16V, 200PPS | |
| @ -40°C | < 290 N·cm | |
| @ 23°C | < 250 N·cm | |
| @ 85°C | < 200 N·cm | |
| Environmental & Physical | ||
| Noise Level | ≤ 35 dB(A) | @ 12V, 200PPS, No Load & Loaded |
| Protection Class | IP50 | Dust protected, splash resistant |
| Operating Temperature | -40°C to 85°C | Ambient range |
| Storage Temperature | -40°C to 100°C | Non-operating |
| Weight | ≤ 90 g | Lightweight design |
| Duty Cycle | 100% | Continuous operation rated |
| Installation Dimension | Ø 105mm | Compatible with standard housings |
Applications in Automotive Climate Control
This stepper motor is specifically engineered for integration into HVAC Air Distribution Assemblies. Typical applications include:
- Temperature Blend Door Actuation: Precise mixing of hot and cold air streams to achieve target cabin temperatures.
- Air Mode Selection: Controlling airflow direction (Face, Foot, Defrost) via mode door levers.
- Recirculation Flap Control: Switching between fresh air and recirculated air modes efficiently.
- New Energy Vehicle (NEV) Heat Pumps: Critical for managing refrigerant flow and air routing in electric vehicle thermal management systems, where efficiency and silence are paramount.
Why Choose Zhengzhou Junchi Tech?
At Zhengzhou Junchi Tech Co., Ltd., we do not just manufacture components; we engineer solutions for comfort and safety. Our production facilities adhere to strict IATF 16949 quality management standards, ensuring every stepper motor meets the exacting requirements of the global automotive industry.
- R&D Excellence: Our dedicated team continuously innovates in magnetic circuit design and gear material science to enhance durability and efficiency.
- Customer-Centric Approach: We offer customized calibration and interface options to seamlessly integrate with various HVAC control modules (ECU).
- Global Trust: Our products are trusted by leading automotive manufacturers for their reliability in extreme conditions and long service life.
Contact Us for Custom Solutions
Looking for a reliable partner for your automotive HVAC actuator needs? Contact Zhengzhou Junchi Tech today to discuss how our high-precision stepper motors can elevate your climate control system performance.
Zhengzhou Junchi Tech Co., Ltd.
Innovating for a Comfortable Drive.
Note: All technical data is based on standard testing conditions at Zhengzhou Junchi Tech R&D Center. Specifications are subject to change for product optimization. For detailed CAD drawings and validation reports, please contact our engineering team.
