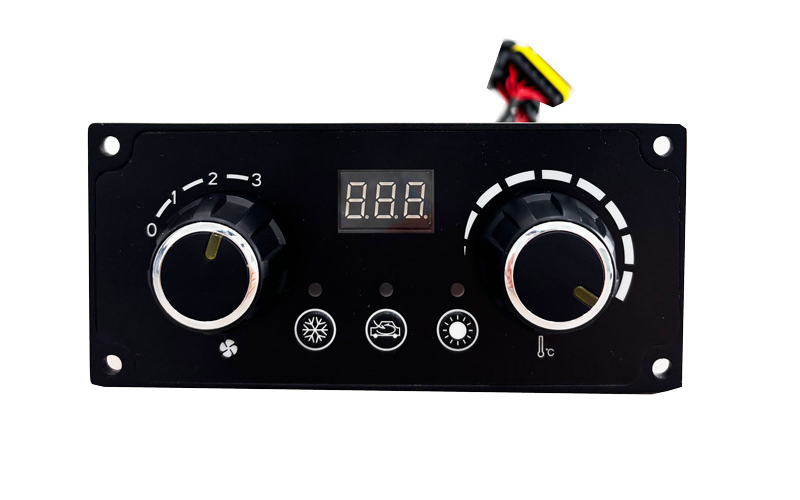

Automotive HVAC Control Panel (Heat Ventilation Air Conditioning Controller)
Product Specifications (English Translation & Enhanced Details):
- Power Supply
- Rated Voltage: 12V DC (Direct Current)
- Enhanced Detail: Compatible with standard automotive 12V electrical systems, suitable for most passenger vehicles.
- Core Functions
- Cooling: Active refrigeration for cabin temperature reduction.
- Heating: PTC heater integration for rapid warm-air delivery.
- Fresh Air Ventilation: Adjustable intake of external airflow with auto-recirculation mode.
- 3-Speed Fan Control: Manual or automatic (via sensor) adjustment of airflow intensity (Low/Medium/High).
- Enhanced Detail:
- Dual-zone temperature control (optional, requires additional sensors).
- Defrost/demist functionality for windshield and side windows.
- Digital display interface with LED/LCD backlighting.
- Physical Dimensions
- Panel Size: 152mm (Length) × 68mm (Width) × [Thickness: TBD mm]
- Enhanced Detail:
- Standard DIN mount compatibility for seamless dashboard integration.
- Material: High-impact ABS plastic with UV-resistant coating.
- Operating Temperature Range: -30°C to +80°C.
- Additional Technical Features
- Control Interface: Capacitive touch buttons or rotary dials (customizable).
- Communication Protocol: LIN bus/CAN bus compatibility for vehicle system integration.
- Certifications: E-Mark, CE, RoHS compliance.
- Protection Rating: IP54 (dust/water-resistant front panel).
