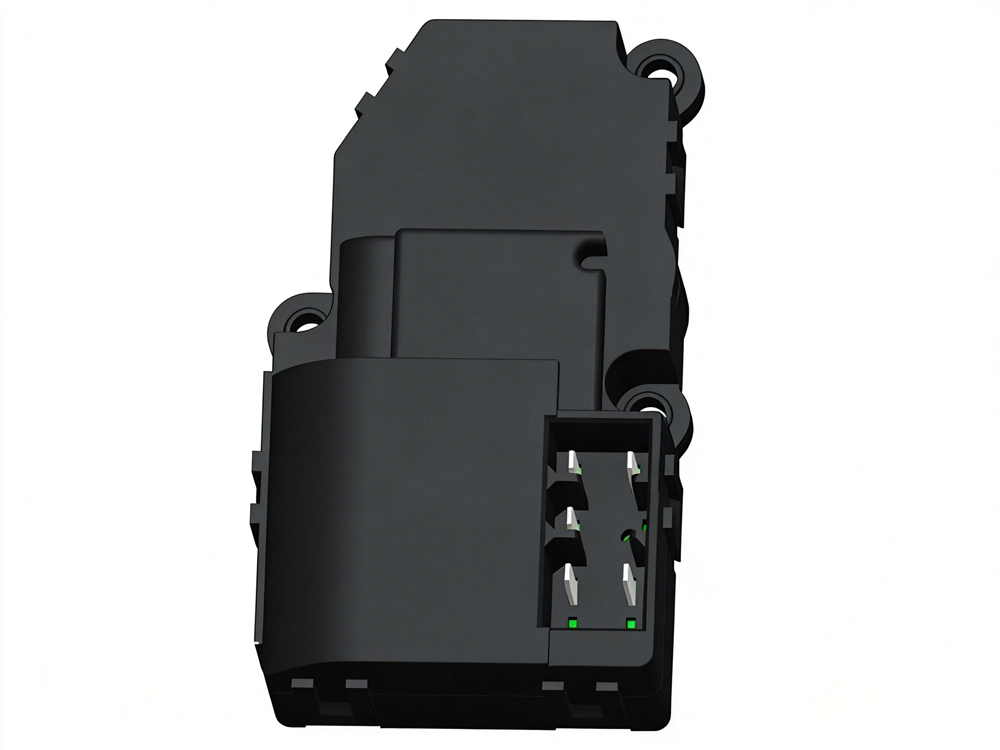

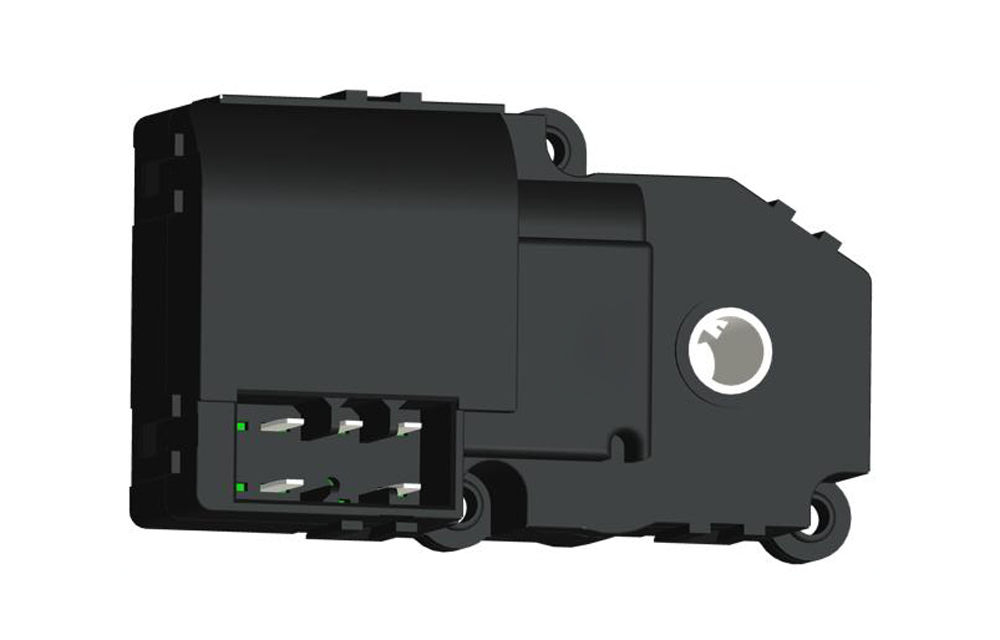

TEMP CONTROL SERVO MOTOR
Description
Temp actuator is used to control the temp./air damper of the vehicle HVAC system.
The actuator operates by switching the polarity of wiring, it could also give a feedback of the opening to the HVAC system.
Dimension
The initial setting position ,travel angle could be customized
4.Technical data:
| Power supply | DC12V /DV24V |
| Power consumption | 3W |
| Current | Max.70mA |
| Electrical connection | Max.1m X 0.5mm² |
| Direction of rotation | CW/CCW |
| Angle of rotation | 84°/108°+2° (Customization) |
| Torque | 4kgf.cm |
| Running time | 3.5+0.5rpm |
| Locked torque | 12kgf.cm |
| Locked current | Max.250mA |
| Noise level | Max.43dB(A) |
| Ambient temperature | -30°c—80°c |
| Storage temperature | -40°c—85°c |
| Life | Max.500,000 cycle |
| Dimensions | 83X50X28(mm) |
| Weight | 94g |
| Quality certification | TS16949/ISO9001 |
Connection:
Advantage
- Rotation position ,angle customer-design
- Custom LOGO
- Stable,mature product
- Low cost,popular
