Water valve

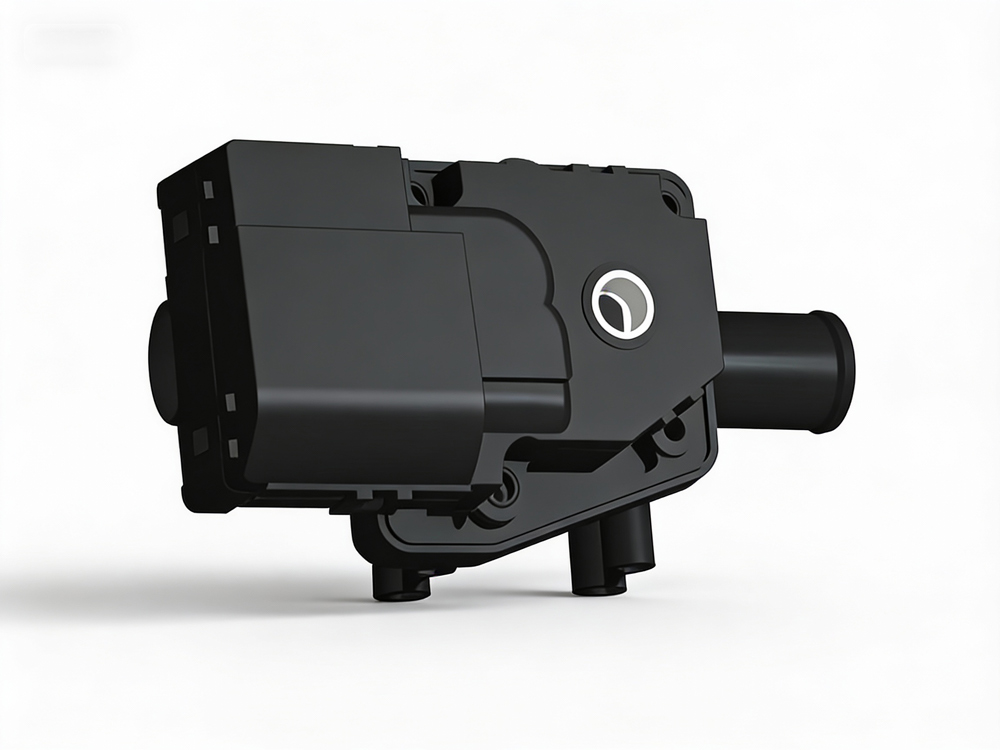

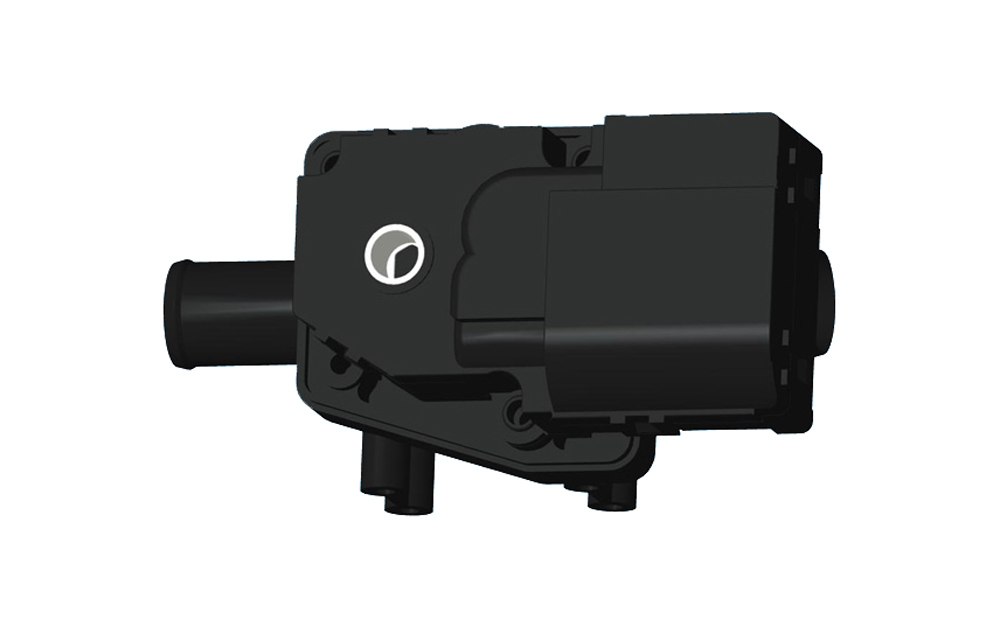

NENEWASE water valve is combined by NEWBASE actuator and the valve body.
1.Function:
Adjust the water flow through switching the polarity of actuator.
2.Types
According to the actual application, 2-wire, 3-wire or 5-wire actuator is optional.
ON/OFF Type — two wires, it open the valve to some an angle and close by changing the polarity of wiring.
Switch ON/OFF Type — three wires, it turn on/off the valve by putting through/cutting off the control wire.
Temp Type — five wires, the actuator operates by switching the polarity of wiring, it could also give a feedback of the opening to the HVAC system.
Mode Type — seven wires, it could control the valve to stop on different opening percentage.
Voltage control Type — it turn on/off the valve gradually , driven by 0~10 V voltage signal
Manual Type — the valve is on/off by hand with a force arm.
3.Application :
NEWBASE water valve is widely used for Vehicular Air Conditioning & Heating Control System, such as bus, van, auto ,engineering truck, refrigeration system and so on.
4.Accessories:
1. Bracket: plentiful selects, or customization;
2. Lever: plentiful selects, or customization;
3. Connector: customization.
